Corsair 28 Specifications |

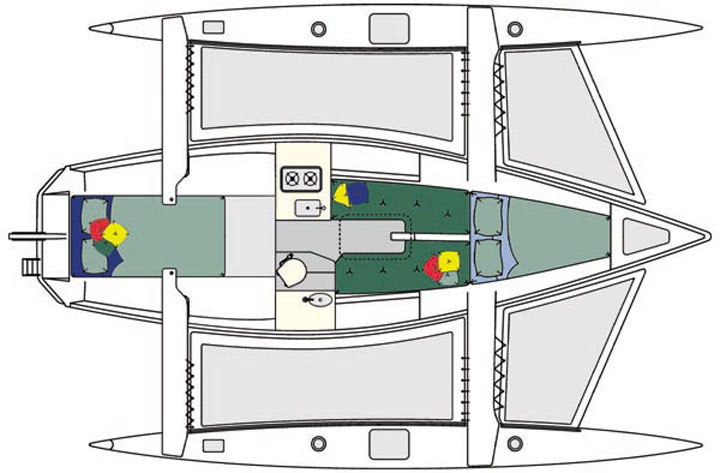

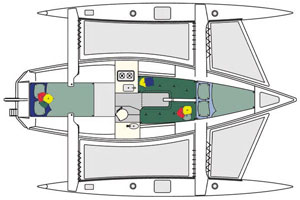

Corsair 28 Center Cockpit
Click for larger image in new window.

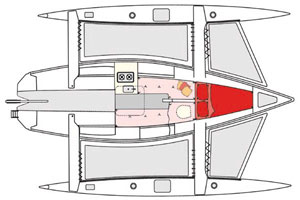

Corsair 28 Aft Cockpit
Click for larger image in new window.

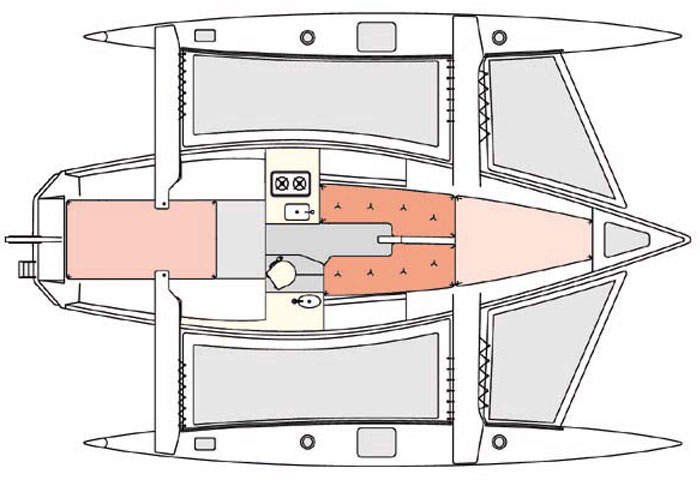

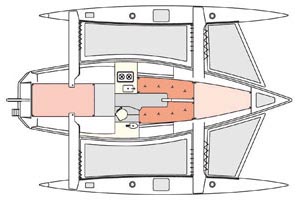

Corsair 28R Center Cockpit
Click for larger image in new window.
Corsair 28R Aft Cockpit
Click for larger image in new window.
Specifications for all Corsair 28 models.
| LOA | 28′ 5″ | (8.66 m) |
| LWL | 26′ 3″ | (8.0 m) |
| Beam (overall) | 19′ 9″ | (6.1 m) |
| Beam (folded) | 8′ 2-1/2″ | (2.5 m) |
| Draft (hull only) | 1′ 2″ | (0.36 m) |
| Draft (daggerboard down) | 4′ 11″ | (1.5 m) |
| Mast height Corsair 28 | 36′ 10″ | (11.22 m) |
| Mast height Corsair 28R | 38′ 4″ | (11.68 m) |
| Weight (empty) | 2690 lbs. | (1224 kg.) |
| Hulls | Fiberglass w/PVC foam core | |
| Aux. propulsion | 8 hp outboard (2-stroke or 4-stroke) | |
| Sail area: | ||
|
– Mainsail Corsair 28 |
300 sq.ft. | (27.88 sq.m) |
| – Mainsail Corsair 28R | 321 sq.ft. | (29.83 sq.m) |
| – Jib | 175 sq.ft | (16.26 sq.m) |
| – Screacher | 358 | (33.26 sq.m) |
| – Asym. spinnaker | 780 sq.ft. | (72.46 sq.m) |
| Designer | Based on an original design
by Farrier Marine, Inc.
|
|
| Builder | Corsair Marine, Inc. |
