Corsair Sprint 750



Nothing can beat the Corsair Sprint 750! It’s an absolute blast for daysailing, camp-style cruising, and one-design racing; and it’s towable without a giant SUV!

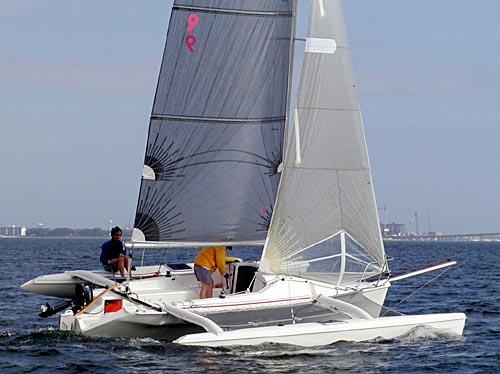

Corsair Sprint 750 Trimaran

The Corsair Sprint 750 has been a popular addition to Corsair’s worldwide-favorite line of trailerable trimarans. Based on the well-proven Corsair 24, the new Corsair Sprint 750 takes performance and fun to the next level and then some: it offers all the performance and flexibility of a beach catamaran with none of the annoyances. It won’t go into irons, it will tack and go to weather as well as or better than any monohull (and certainly better than any beach cat), and it gives you an optional cuddy-cabin and full cockpit enclosure for camp-style overnighting, is fully beachable, easier to trailer, rig and launch than any other trimaran, cat or monohull in it’s size range, and affordable.

ImageWith its huge cockpit and optional cockpit cabin, double bunk, area for portable head, and spacious decks and nets, the Corsair Sprint 750 is a highly mobile pocket cruiser; but it’s the amazing performance – with 20-knots plus speed capability – that sets the Corsair Sprint 750 apart. Even in the toughest conditions you only need a crew of two to obtain top racing performance. The Corsair Sprint 750 can fly an easy-to-handle asymmetrical spinnaker for exhilarating performance at a high plane; synthetic rigging adds to the ease of rigging and maintenance. The Corsair Sprint 750 has an active one-design class association, its own chat group on the internet and has already become a favorite one-design racer.

Photo Gallery and Movies

Click here for a gallery of Sprint 750 photos. View a short Sprint 750 movie as a Quicktime mov file  (19 mb, higher resolution) or as a Windows Media Player .wmv file (7 mb, lower resolution).

Drawings

Sailplan

Layout


Click to open a pdf file
in a new window.


Click to open larger image
in a new window.

Specifications





LOA 24′ 3″ 7.4 m
LWL 23′ 7″ 7.2 m
Beam (overall) 17′ 11″ 5.5 m
Beam (folded) 8′ 2 2.5 m
Draft (hull only) 1′ 0″ 0.3 m
Draft (board down) approximately 5′ 6″ 1.6 m
Mast length 35′ 6″ 10.8 m
Weight, approximate 1,584 lbs 720 kg
Hulls
Berths 2
Auxiliary propulsion 5-hp outboard
Sail area:
– Mainsail 262.3 sq ft 24.4 sq m
– Jib 166 sq ft 15.4 sq m
– Asymmetrical spinnaker 627 sq ft 58.3 sq m
